| a graphic audio spectrum analyser | |||

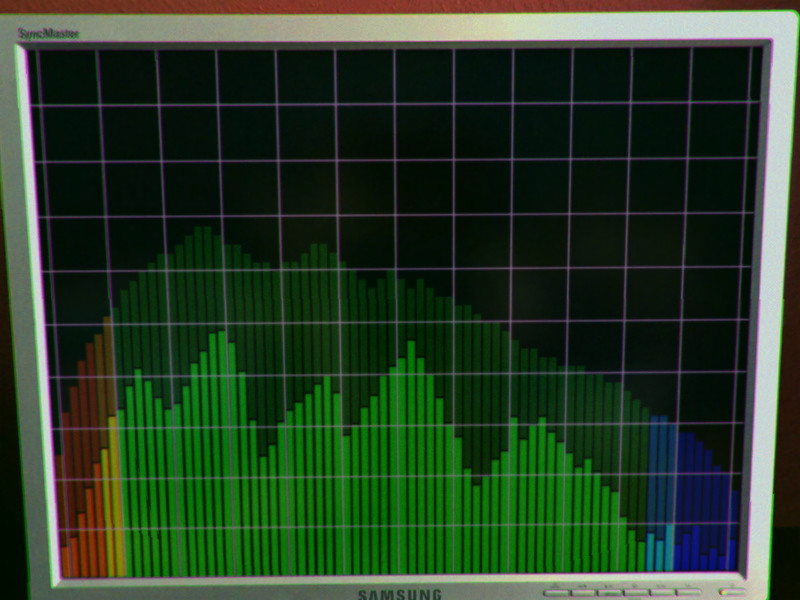

| DSP Module | A graphic spectrum analyser with 64 bands from 10 Hz to 40.000 Hz in binary logarithmic scale running on in Altera  Enhanced type of my spectrum analyzer for SXVGA 1280 x 1024. Audible spectrum is green. 2 Bits per colour are available. Min and Max are memorized. See also: Audio Analyser in Spartan FPGA |
||
|
Altera Cyclone FPGA
|
|||
|
96 kHz Audio DSP |
|||
|
|
|||
