a graphical spectrum analyser
  DSP Module


graphical spectrum analyzer with FPGA - Jürgen Schuhmacher 2005



A graphic spectrum analyser with 192 bands from 10 Hz to 20.000 Hz in logarithmic scale running on a Xilinx Virtex test system for noise measurement. It also works in the Spartan 3 environment. The analyzer uses e.g. the multi pipeline filter used already in the vhdl-audio-filter.


graphical spectrum analyzer with FPGA - Jürgen Schuhmacher 2005

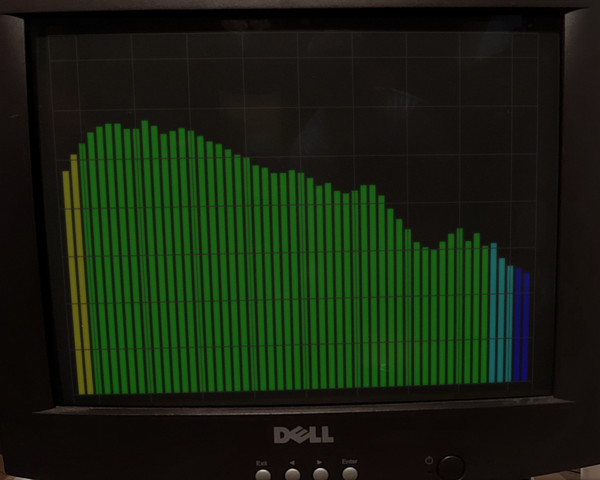

Early type of spectrum analyzer with SXVGA 1280 x 1024

 The first analyzer was done in the home made fpga platform, see:
