| a PD-Synthesis module in VHDL | |||

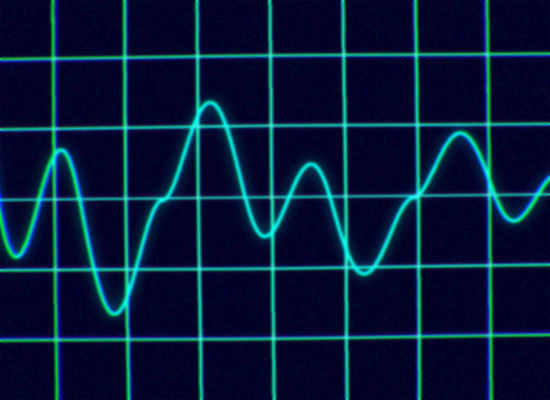

| DSP Module | A VHDL-implementation of my phase distortion unit is used for Casio-like sound synthesis in my audio DSP.  Several parameters are used to emulate the known PD-Synthesis sound known from Casio-Synthesizers. Phase offset and modulation depth can be selected, so can the wave forms for the relevant signal path.  With the Spartan FPGA, 1024 voices can be achieved @ 48kHz. Read more about the algorithm here: PD-Synthesis in DSPs |
||
|
Spartan II FPGA
|
|||
|
48 kHz Audio DSP |
|||
|
|
|||
