Here is an idea to use different widths of 3,4,5 and 6cm for the elements of the sound diffusors to obtain symmetrical devices which are more appropriate for living rooms possibly.

The Colors refer to the different widths used for the elements:

Brown : 6cm,  Yellow : 5 cm,   Green : 4 cm,   Blue : 3 cm



The designs may be use freely for non commercial use.



Example for 54cm width:

A Mosaic Pattern used for Acoustic Diffusers from wood



Examples for 60cm width:

A Mosaic Pattern used for Acoustic Diffusers from wood



A Mosaic Pattern used for Acoustic Diffusers from wood



Examples for 62cm width:

A Mosaic Pattern used for Acoustic Diffusers from wood



Example for 66cm width:

A Mosaic Pattern used for Acoustic Diffusers from wood

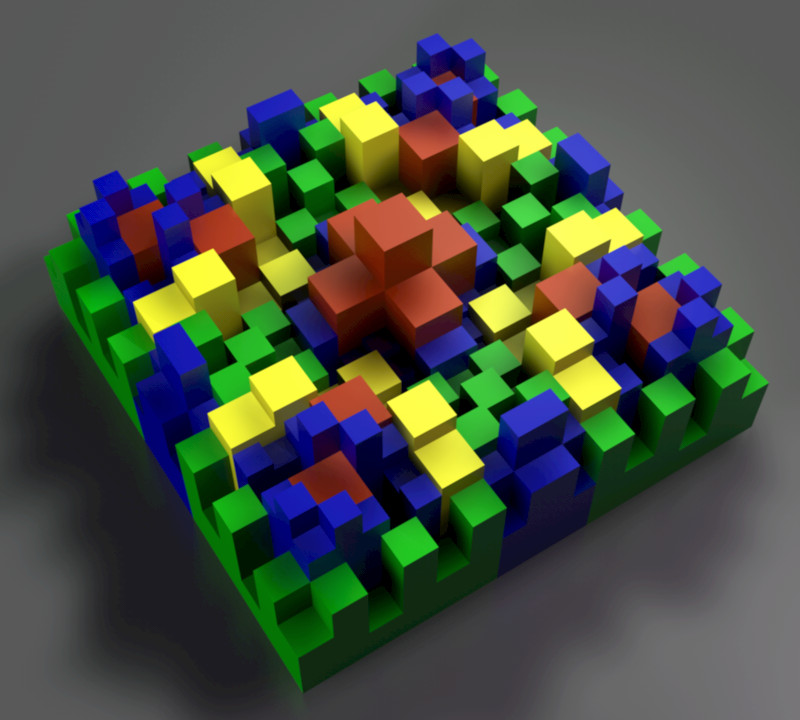

Examples for 70cm width:

A Mosaic Pattern used for Acoustic Diffusers from wood



A Mosaic Pattern used for Acoustic Diffusers from wood

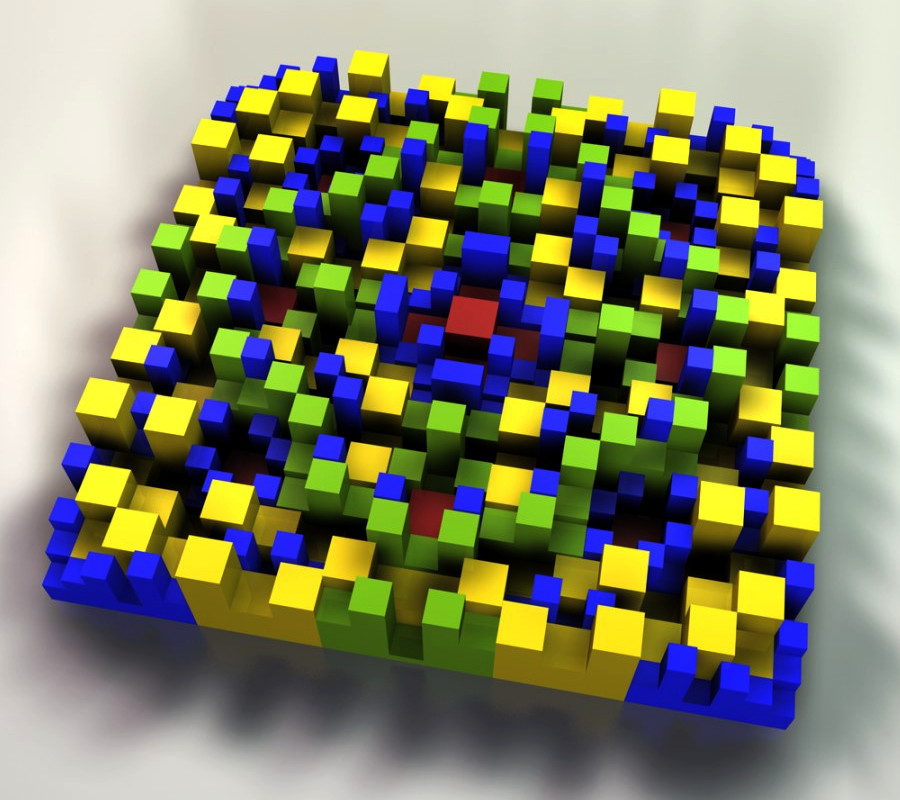

Example for 86cm width:

A Mosaic Pattern used for Acoustic Diffusors from wood



Site update:

An animation of a large scale mosaic full symmetrical diffusor made with Cinema 4D:

A 2D Mosaic Acoustic Diffuser
