A fast interpolation filter in VHDL

(c) 2008 Jürgen Schuhmacher



A cascaded recursive filter for oversampling audio data with 48kHz to 96kHz and 192kHz.
This filter uses 4 samples to smoothly interpolate 1,2,4 points in betwen sample 2 and 3.



VHDL-Code

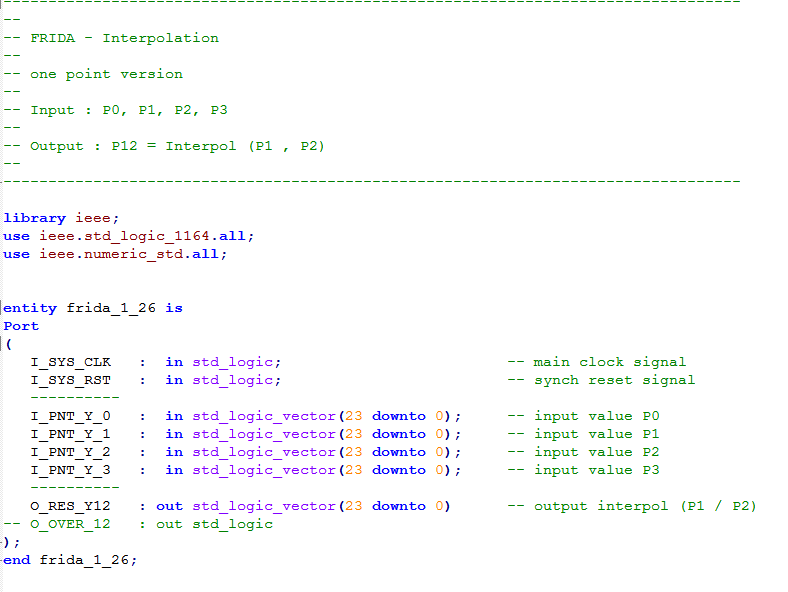

oversampling filter in VHDL 1:2

Representation of the FPGA Design for a one stage filter 1:2

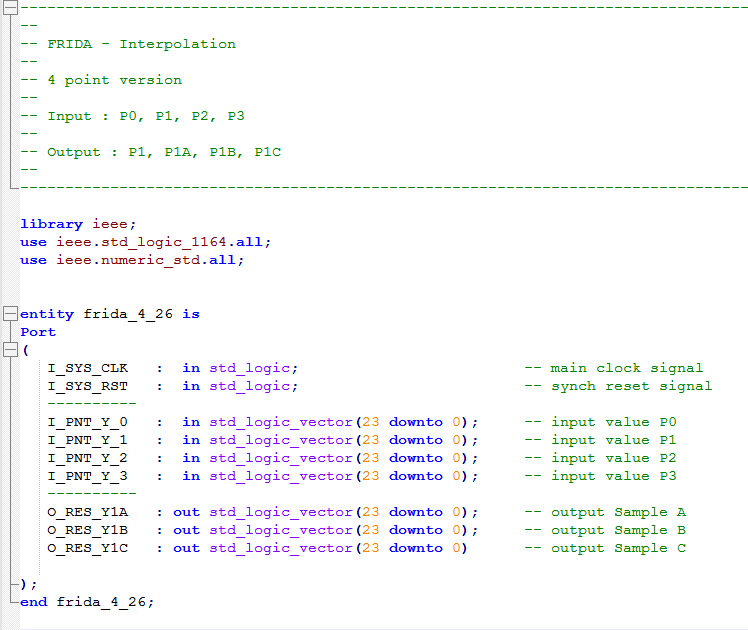

oversampling filter in VHDL 1:4

Representation of the FPGA Design for a two stage filter 1:4 -> 4 samples for points 2 and 3


FPGA - Design Spartan 6 FPGA

Physical part of the FPGA Design (IO wrapper).

(changed because of FPGA-change)



Verification - Simulation

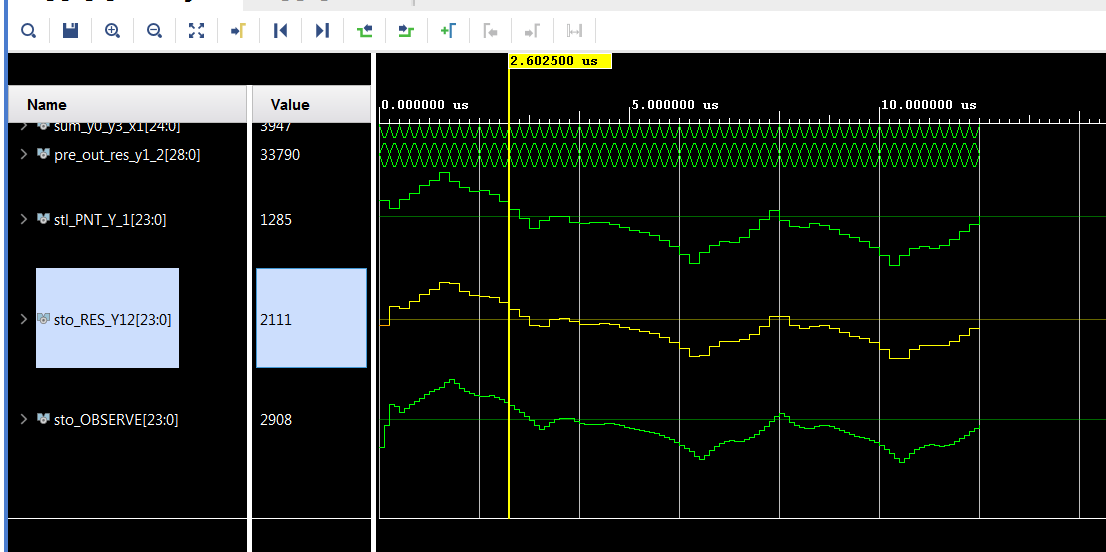

Simulation of FRIDA 1:2 oversampling - Jürgen Schuhmacher 2008

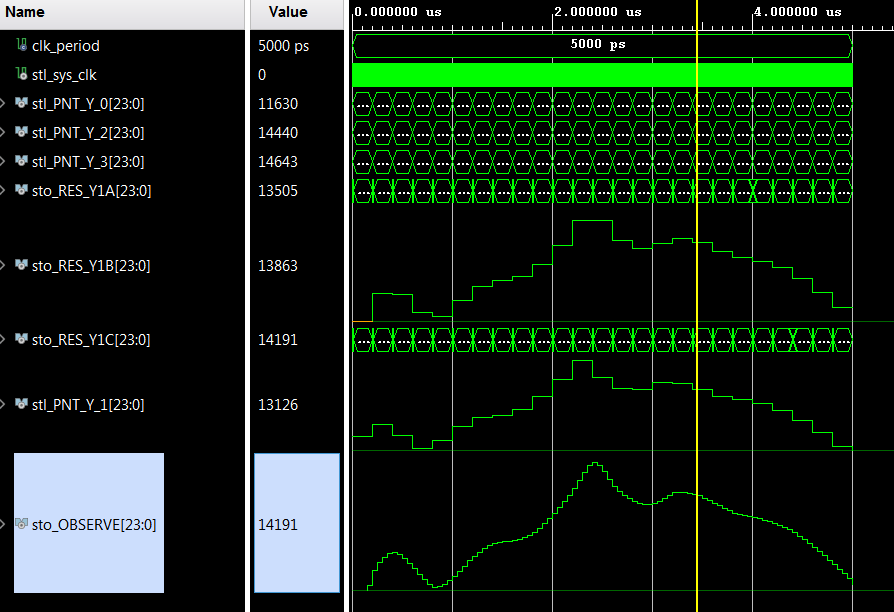

Simulation of FRIDA 1:4 oversampling - Jürgen Schuhmacher 2008



Jürgen Schuhmacher - 2008

changes 2013 - imported to Vivado for Artix 7
